Masonry Expansion Ties M.E.T
Masonry Expansion Ties flexible fixing for Brick and Block wall construction

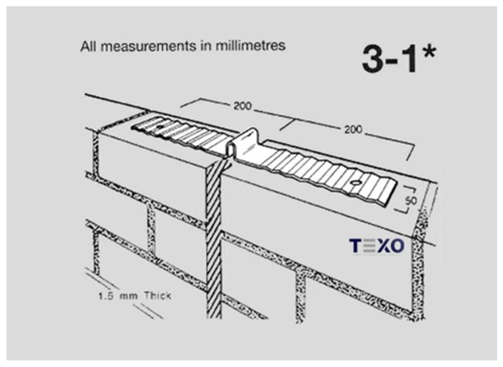

MET 3-1 Vertical Expansion Joint Tie
Galvanised compression tie for bed joint bridging of vertical expansion joints. Resists lateral movement, compression action. Copes with brick or block wall movement.
50×1.5mm thick 200mm/200mm

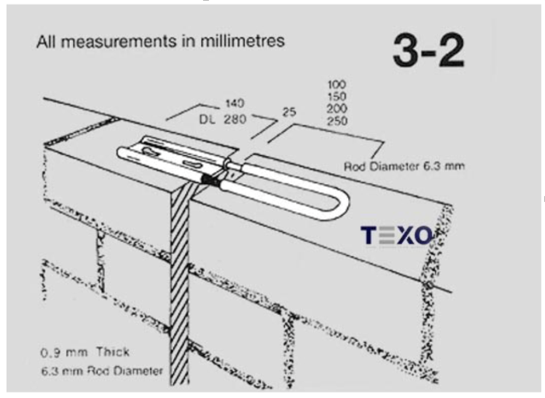

MET 3-2 Vertical Expansion Joint Tie
Galvanised sliding tie for bed joint bridging of vertical expansion joints. Resists lateral movement sliding action copes with brick or block wall movement.
6.3mm rod diameter, 140 x 150MM
WE CAN SPECIAL ORDER OTHER SIZES

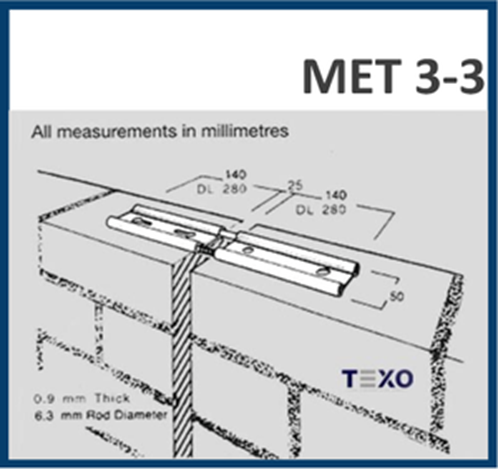

MET 3-3 Vertical Expansion Joint Tie
Galvanised/ stainless steel available sliding tie for bed joint bridging of vertical expansion joints. Resists lateral movement sliding action copes with brick or block wall movement.
0.9mm/ 6.3mm rod diameter 140mm/25/140mm
M.E.T 4 Head Restraint Ties

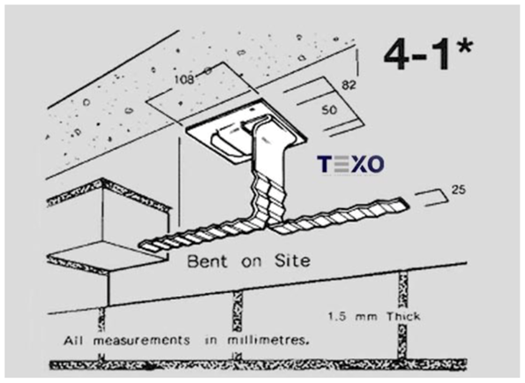

MET 4-1 Head Restraint Tie
1.5mm thick Galvanised compression tie for fixing non-bearing walls to under-side of concrete slab or beam. Resists lateral movement, compression action copes with deflection and shrinkage of concrete slab and brick or block wall movement.
1.5mm thick

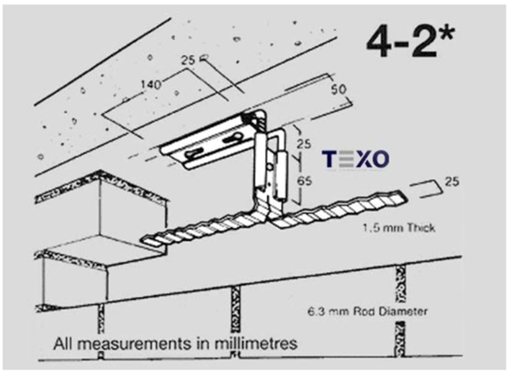

MET 4-2 Head Restraint Tie
Galvanised sliding tie for fixing non-bearing walls to underside of concrete slab or beam. Resists lateral movement compression action copes with deflection and shrinkage of concrete slab and brick or block wall movement.
1.5mm thick/ 6.3mm rod diameter

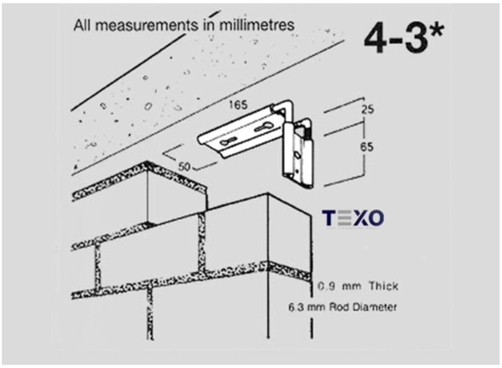

MET 4-3 Head Restraint Tie
Galvanised sliding tie for fixing non-load bearing walls to underside of concrete slab or beam. Resists lateral movement, compression action copes with deflection and shrinkage of concrete slab and brick or block wall movement.
0.9mm thick/ 6.3mm rod diameter
M.E.T 5 Column Expansion Ties

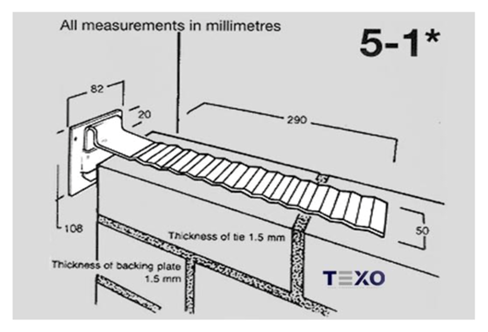

MET 5-1 Column Expansion Tie
Galvanised compression tie for fixing brick or block walls to columns. Resists lateral movement compression action copes with brick growth, block shrinkage and column movement.
1.5mm thick – Tie/Plate 290×50 mm

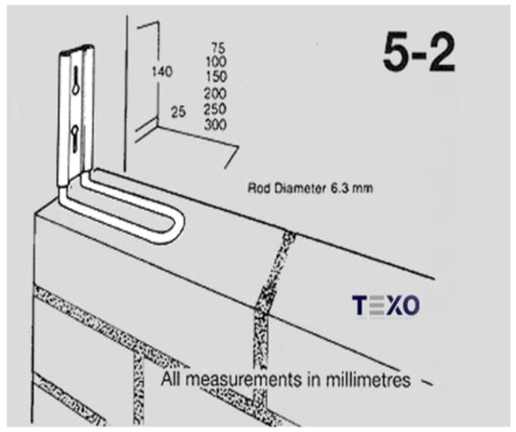

MET 5-2 Column Expansion Tie
Galvanised sliding tie for fixing non-bearing walls to underside of concrete slab or beam. Resists lateral movement compression action copes with brick growth, block shrinkage and column movement.
6.3mm rod diameter, 140 x 100/150/200
WE CAN SPECIAL ORDER OTHER SIZES BOX OF 50.

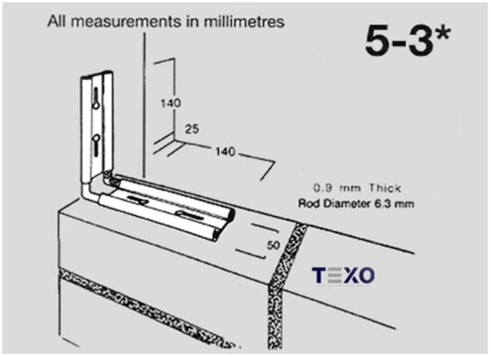

MET 5-3 Column Expansion Tie
Galvanised sliding tie for fixing brick walls to columns. Resists lateral movement sliding action copes with brick growth and column movement. :Note: the 5-3 can be used in the following situations: As a flat wall tie for intersecting wall or corners : As an MET 4-3 in 200 high blockwork
0.9mm thick/ 6.3mm rod diameter 140mm/25/140mm
We can special order MET ties. That are not stocked items.
